Led driver IC HL2202 motorcycle taillights flashing, decorative lights flashing flash IC General Specifics:

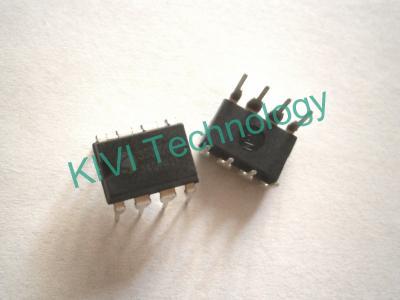

Led driver IC HL2202 3 way full color CMOS process synchronization colorful flash ICProduct Details:
Specifications
1, Flashing led driver IC HL2202 2, 3-18vdc working voltage 3, Circle flashing 4, Sample order is acceptedFethures:
HL2202 is flashing Happy 3,4 output circuit, the external operating voltage width (3-18v), drive current can be big, peripheral is simple, widely used in automobiles, electric vehicles, motorcycles, light vehicle tail lights, and also usd for to all types of strobe light, warning lights in the field!
| Pin # | Pin name | Symbol | Function description |
| 1 | output 1 | Q1 | one of 3/4 way ouput |
| 2 | output 2 | Q2 | two of 3/4 way ouput |
| 3 | oscillator | OSC | External RC oscillation generated base |
| 4 | GND | Vss | ground |
| 5 | 3/4/way | Set | Vacant for four, then three-way Vss |
| 6 | output 4 | Q4 | four of 4 way ouput |
| 7 | outout 3 | Q3 | three of 3/4 way ouput |
| 8 | power | Vdd | power supply postive 3-18v |
