Product Name:

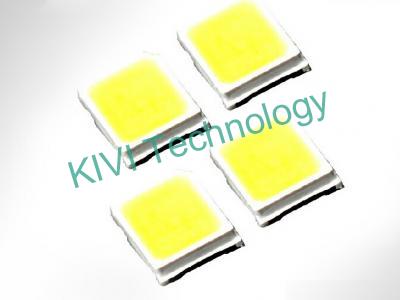

2835 SMD led components/led chips white General Specifics:
•Package size(mm): 3.5(L)×2.8(W)×0.8(H)•Wide viewing angle:120°
•Super long lifetime:>30000H
•Silicone packed
•Suitable for all SMT assembly and solder process.
•Available on tape and reel.
•Moisture sensitivity level:
Product Details:
|
Parameter |
Symbol |
Value |
Unit |
||||||
|
Forward current |
If |
60 |
mA |
||||||
|
Reverse voltage |
Vr |
5 |
V |
||||||
|
Power dissipation |
Pd |
0.2 |
W |
||||||
|
Operating temperature range |
Top |
-25~+80 |
°C |
||||||
|
Storage temperature range |
Tstg |
-30~+85 |
°C |
||||||
|
Peak pulsing current（1/8 duty f=1KHz） |
Ifp |
100 |
mA |
||||||
|
Electro-Optical characteristics (TA=25°C) |
|||||||||
| Parameter |
Test Condition |
Symbol |
Value |
Unit |
|||||
|
Min |
Typ |
Max |
|||||||
|
Color Temperature |
If=60mA |
CCT |
2800 |
-- |
3200 |
K |
|||
|
Forward voltage |
If=60mA |
Vf |
3.0 |
-- |
3.6 |
V |
|||
|
Light |
If=60mA |
φ |
20 |
-- |
22 |
Lm |
|||
|
Viewing angle at 50% IV |
-- |
2θ1/2 |
-- |
120 |
-- |
Deg |
|||
|
Reverse current |
Vr=5V |
Ir |
-- |
10 |
-- |
μA |
|||
Applications
-
Optical indicator
-
Indoor display
-
Automotive lighting
-
Decorative lighting
-
Other illumination and displays
