Output Type: Single
Input Voltage: 90-305vac
Output Voltage: 12-36Vdc
Output Frequency: 47-63Hz
Output Current: 2080mA
Watperproof: Yes, IP67waterproof
Efficiency: >90%
Quality: High quality ecap and original chip

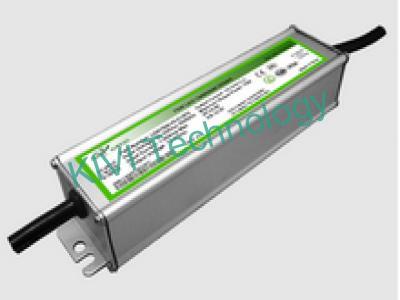

Compact 75W constant current led driver from professional factory
Product type: Compact and efficient, constant-current-driven
Application Scope: LED Street Lights, LED Tunnel Lights, LED Grille
Product size: Size: 126mm(L)×59mm(W)×37mm(H)
Warranty: 3 years
| Constant Current |
Input Voltage Vac |
Power Factor |
Output Voltage Vdc |
Constant Current mA |
Current Acuracy % |
Typical Efficiency | Location | CQC | CE | |
| LZC75W Series | @120v | @230v | ||||||||
| LZC75W-214-C0350 | 90-305 | 0.99 | 0.95 | 71-214 | 350 | ±5 | 93 | outdoor | yes | Yes |
| LZC75W-142-C0530 | 90-305 | 0.99 | 0.92 | 47-142 | 530 | ±5 | 93 | outdoor | Yes | Yes |
| LZC75W-108-C0700 | 90-305 | 0.99 | 0.95 | 36-108 | 700 | ±5 | 93 | outdoor | Yes | Yes |
| LZC75W-72-C1050 | 90-305 | 0.99 | 0.95 | 24-72 | 1050 | ±5 | 92 | outdoor | Yes | Yes |
| LZC75W-68-C1100 | 90-305 | 0.99 | 0.95 | 23-68 | 1100 | ±5 | 92 | outdoor | Yes | Yes |
| LZC75W-48-C1560 | 90-305 | 0.99 | 0.95 | 16-48 | 1560 | ±5 | 92 | outdoor | Yes | Yes |
| LZC75W-43-C1740 | 90-305 | 0.99 | 0.95 | 14-43 | 1740 | ±5 | 91 | outdoor | Yes | Yes |
| LZC75W-36-C2080 | 90-305 | 0.99 | 0.95 | 12-36 | 2080 | ±5 | 91 | outdoor | Yes | Yes |
| LZC75W-28-C2670 | 90-305 | 0.99 | 0.95 | 9-28 | 2670 | ±5 | 91 | outdoor | Yes | Yes |
| LZC75W-24-C3120 | 90-305 | 0.99 | 0.95 | 8-24 | 3120 | ±5 | 91 | outdoor | Yes | Yes |
| LZC75W-18-C4160 | 90-305 | 0.99 | 0.95 | 6-18 | 4160 | ±5 | 90 | outdoor | Yes | Yes |
| LZC75W-15-C5000 | 90-305 | 0.99 | 0.95 | 5-15 | 5000 | ±5 | 90 | outdoor | Yes | Yes |
| LZC75W-12-C6250 | 90-305 | 0.99 | 0.95 | 4-12 | 6250 | ±5 | 89 | outdoor | Yes | Yes |
Product details:
LZC75W Series, led constant current drivers, Compact & Efficient
1. Drive Mode: Constant Current
2. Technology: PFC + LLC
3. Output Power: 75W Max.
4. Input Voltage: 90 to 305VAC,47-63HZ
5, Number of output: single
6. Output Voltages: 4~ 214Vdc
7. Output Currents: 350mA - 6250mA
8. Safety: EN61347, J61347 (H20), UL8750, CSA C22.2
9. EMC: EN55015, J55015 (H20), FCC 47CFR Part 15 Class B
10. Comply with PSE, CE & CCC
11. RoHs compliant;
12. Metel Shell, Silicone Potting, Tc 120°C Maximum;
13. Compact, Lightweight Design;
14. Water Resistant and Dust Proof Design: IP66, NEMA 13, for Dusty, Damp, Wet Locations;
15. Standard electrical box for installation;
16. Active Power Factor Correction technology to reduce power consumption;
17. Safety Isolation between Primary and Secondary.
18. Surge Immunity (Lightning Protection): Comply with EN61000-4-5, AC line to line 2000V
Product parameters:
1. Operating Temperature: −30 to +60°C,
2. Storage Temperature: −40 to +85°C;
3. Humidity (non-condensing): 5% to 95%RH;
4. Cooling: Convection;
5. Vibration Frequency: 5 ~ 55HZ/2g, 30 minutes;
6. Impact Resistance: 1g/S;
7. MTBF@40°C: 500,000 hours @ Full Load per MIL-217 Notice 2.;
8. LIFE@25°C: 100,000 hours @ Full Load per MIL-217 Notice 2.;
9. Maximum Input Current: 0.4A (@ 120V, full load);
10. Input Surge Current: <25A (25°C, 230V, cold start);
11. CISPR 22 CLASS B, CISPR 14-1 CLASS B,
EN61000-3-2 & EN61000-3-3 Class C,
GB19510.14-2009, GB19510.1-2009,
GB17743.1-2007, GB17625.1-2003
12. Constant Current Regulation: ±3%, Over Input Line Variation;
13. Load Regulation Accuracy: ±3%;
14. Output Current Ripple: < 1%*Io ;
15. Leakage Current: 400uA typical; Hold up time: half cycle
16. Standby Power: <0.4W@120V, <0.8W@230V, <1.0W@277V;
17. Protection: Output over-voltage protection;
Output over-current protection;
Output short circuit, auto-recovery;
18. Lightning & transient protection built in.
