Product Name:
Waterproof led driver 12W 12-24vdc input constant current 300mA output wholesale power supply General Specifics:
1, 12W constant current led driver 2, 12-24Vdc input
3, 300mA, 16-42v output
4, 100% burn-in test
5, 2 year warranty
Product Details:

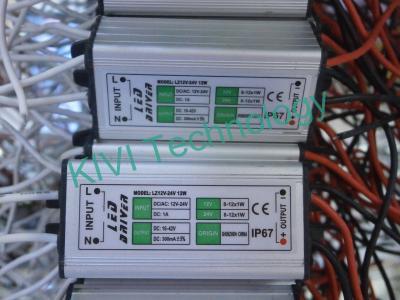

12w led driver constant current waterproof 300mA 12-24vdc input wholesale from factory
| Model Number | LZ12-24V12W |
| Place of Origin | China |
| Brand Name | tresun |
| Output Power | 12W |
| Output Type | Single |
| Input Voltage | DC 12-24V |
| Output Voltage | DC 16-42V |
| Output Frequency | 50-60Hz |
| Output Current | 300mA |
| Power Factor | 0.7-0.95 (optional) |
| LED Connection Type | high power led |
| Color | Silver or Grey |
| Material | Aluminum |
| Size | 83x30x20mm |
| IP Rating | IP67, waterproof, dustproof |
| Lifespan | 30,000-50,000 hours |
| Warranty | 2 years |
| Certificate | CE, RoHS |
Feature
Waterproof Constant Current LED Driver from tresun
.International full-range input voltage
·Protection: shortcircuit/overload/overvoltage/overheat
·Natural air cooled
·100% full load aged
·Idle power < 1.1W
·All capacitors are 105°C long-life electrolytic
·Capacity of surge of 300VAC: 5 seconds
·Working temperature up to 70°C
·Passes 5G vibration test, 12W, 15W, 18W driver
·High efficiency, long life & high reliability
· High quality, high efficiency>85%
· Waterproof, dustproof, IP67
· With CE certificate, complied RoHS standard
· Over-heat, short-circuit & over-load protection with self-setting
· Rigorous ripple and low noise
·2-year warranty for 12w led driver 300mA constant current
