2, 100-220vac input
3, Max drive 4096 Pixels
4,Support online&off-line use
5, 32-256 scales/ color

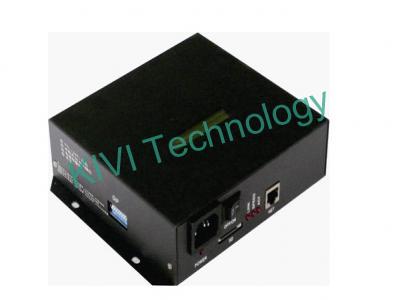

Led rgb controller programmable
When the IC is 256 grey level, T-100K can support 512 pixel each port
When the IC is 32 grey level, T-100K can support 1024 pixel each port
|
Support IC type |
Module in LedEdit software |
Pixel numbers |
remark |
|
LPD6803,D705,1101 |
T-100K-B-6803 |
4096 pixel
|
|
|
LPD8806,LPD8809 |
T-100K-B -8806 |
4096 pixel |
|
|
TM1903,TM1904,TM1909,TM1912 |
T-100K-B -TM1903 |
4096 pixel |
TM1904 and TM18909 low speed and high speed |
|
SM16716 |
T-100K-B -SM16716 |
4096 pixel |
|
|
UCS6909,UCS6912,UCS7009,UCS5903 |
T -100K-B -UCS6909 |
4096 pixel |
|
|
UCS1903,UCS1909,UCS1912 |
T -100K-B -UCS1903 |
4096 pixel |
low speed and high speed |
|
UCS3903 |
T -100K-B -UCS1024 |
4096 pixel |
|
|
DMX512 |
T -100K-B -DMX |
4096 pixel |
Compatible DMX512 |
|
WS2801,WS2803 |
T -100K-B -WS2801 |
4096 pixel |
|
|
WS2811 |
T -100K-B -WS2811
|
4096 pixel |
low speed and high speed |
|
DS189 |
T -100K-B -DS189 |
4096 pixel |
|
|
TLS3100 |
T -100K-B -TLS3100 |
4096 pixel |
|
|
P9813 |
T -100K-B -P9813 |
4096 pixel |
|
|
SM16726 |
T -100K-B -SM16726 |
4096 pixel |
low speed and high speed |
|
SM16716 |
T -100K-B -SM16716 |
4096 pixel |
|
|
BS0825 |
T -100K-B -0825 |
4096 pixel |
|
|
BS0815 |
T -100K-B -0815 |
4096 pixel |
T-100K-B System features
1, 32—256 Gray level,Support software Gamma correction.
2, Support all the rules and special-shaped handle.
3, With 8 port output , each port can support 512 pixels.
4, Off-line(SD Card) control, play back content stored in the SD card.
5, T-100K-B store a maximum of 16 programs,copy multiple files to the SD card in order, after formatting the SD card as “FAT” format.
6, The program must be named in orders . just as :00_1.led, 01_1.led, 02_1.led.
7, Compatible with single line or double line chips
8, Built-in lightning resistant and ESD protection circuit, ensure the safe and reliable
9, Enhace TTL signal and RS485 differential signal ouput
Datasheet is available upon requested
