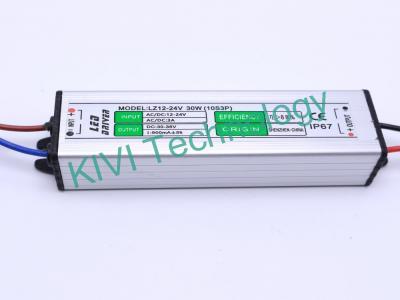

12-24v input constant current
led driver 30W 900mA
IP65 wholesale for led street light
| Model Number | SOT-LZ12-24v-30W |
| Place of Origin | China |
| Brand Name | SOT/OEM |
| Output Power | 30W |
| Output Type | Single |
| Input Voltage | AC/DC12-24V |
| Output Voltage | DC30-96V |
| Output Frequency | 50-60Hz |
| Output Current | 900mA |
| Power Factor | 0.7-0.95 (optional) |
| LED Connection Type | high power led 10 series and 3 parallel |
| Color | black or Grey |
| Material | FR4 pcb |
| Size | 105x36x27mm |
| IP Rating | waterproof |
| Lifespan | 30,000-50,000 hours |
| Warranty | 2 years |
| Certificate | CE, RoHS |
Features of LZ boost led driver
1, Professional waterproof Constant Current LED Driver from SOT, accept oem orders
2, International full-range input voltage and widely used
3, Protection: shortcircuit/overload/overvoltage/overheat
4, Natural air cooled, 100% full load aged
5, Idle power < 1.1W
6, High quality components choosed and tested, all capacitors are 105°C long-life electrolytic
7, Capacity of surge of 300VAC: 5 seconds, working temperature up to 70°C
8, Passes 5G vibration test, high efficiency, long life & high reliability
9, With CE certificate, complied RoHS standard
10, Over-heat, short-circuit & over-load protection with self-setting
11, Rigorous ripple and low noise
12, 2-5-year warranty for 30w led driver 900mA constant current for output solar led street lamp
