Output Frequency:
50/60Hz
Output Current:
0.3A
Product Name:

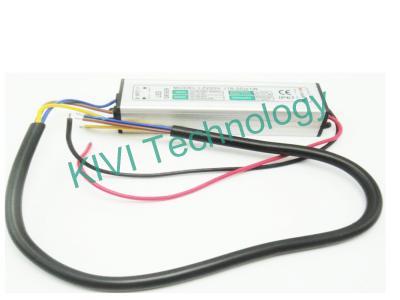

Waterproof led driver 18-25W
Input:
AC85-265v
Output:
300mA constant current
Output voltage:
54-86vdc
Waterproof level:
IP20/ip65/ip67/68
Certification:
CE ROHS
PF:
Eff.
| Model Number | SO-LZ220-18-25W |
| Place of Origin | China |
| Brand Name | SOT/OEM |
| Output Power | 18-25W |
| Output Type | Single |
| Input Voltage | AC 90-265V |
| Output Voltage | DC 54-86V |
| Output Frequency | 50-60Hz |
| Output Current | 300mA |
| Power Factor | 0.7-0.95 (optional) |
| LED Connection Type | high power led 18-28 series and 0 parallel |
| Color | Silver or Grey |
| Material | Aluminum |
| Size | 110x36x28mm |
| IP Rating | IP67, waterproof, dustproof |
| Lifespan | 30,000-50,000 hours |
| Warranty | 2 years |
| Certificate | CE, RoHS |
| OEM | Yes, welcome OEM order |
Features of led LZ driver
1, Professional waterproof Constant Current LED Driver from tresun, accept oem orders
2, International full-range input voltage and widely used
3, Protection: shortcircuit/overload/overvoltage/overheat
4, Natural air cooled, 100% full load aged
5, Idle power < 1.1W
6, High quality components choosed and tested, all capacitors are 105°C long-life electrolytic
7, Capacity of surge of 300VAC: 5 seconds, working temperature up to 70°C
8, Passes 5G vibration test, high efficiency, long life & high reliability
9, With CE certificate, complied RoHS standard
10, Over-heat, short-circuit & over-load protection with self-setting
11, Rigorous ripple and low noise
12, 2-5-year warranty for 18-25w led driver 300mA constant current output
