Product Name:

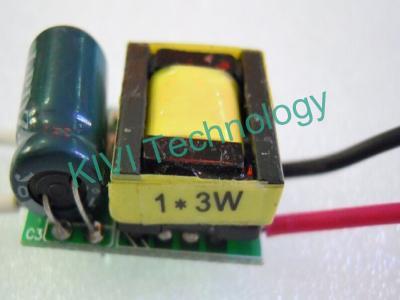

3W led drvier for bulb, build inside 600mA constant current non waterproof General Specifics:
1x3w led driver constant current 300mA for ceiling light, panel light wall light etc outside power supplyOEM and ODM service is available and tech support for your circult and light source design
Product Details:
Specifications
1, 600mA constant current driver 2, 90-265v input, 5-10v output 3, 1x3W bare board 4, 100% full load aged 5, lower cost| Model Number | TS-ID-1x3W |
| Place of Origin | China |
| Brand Name | tresun |
| Output Power | 3W |
| Output Type | Single |
| Input Voltage | 85-265vac |
| Output Voltage | DC6-12V |
| Output Frequency | 50-60Hz |
| Output Current | 600mA |
| Power Factor | 0.6-0.95 (optional) |
| Application | for bulb or other inside lamp |
| Color | Silver or Grey |
| Material | Aluminum, PC |
| Size | 24x15x14mm |
| IP Rating | non waterproof |
| Lifespan | 30,000-50,000 hours |
| Warranty | 2 years |
| Certificate | CE, RoHS |
.Non waterproof Constant Current LED Driver 600mA 1x3W from tresun
.International full-range input voltage
·Protection: shortcircuit/overload/overvoltage/overheat
·Natural air cooled
·100% full load aged
·Idle power < 1.1W
·All capacitors are 105°C long-life electrolytic
·Capacity of surge of 300VAC: 5 seconds
·Working temperature up to 70°C
·Passes 5G vibration test, 600mA power supply outside
·High efficiency, long life & high reliability
·High quality, high efficiency>85%
·Non waterproof, inside use
.With CE certificate, complied RoHS standard
·Over-heat, short-circuit & over-load protection with self-setting
·Rigorous ripple and low noise
·2-year warranty for 1x3w led driver 300mA constant current for inside use power supply
