Product Name:

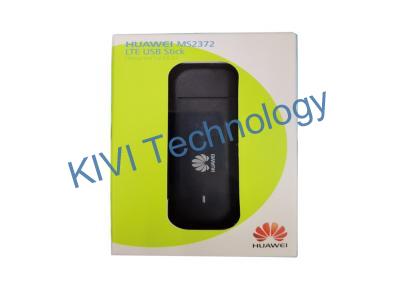

Huawei MS2372 4G LTE Cat.4 Industrial IoT Dongle General Specifics:
Huawei MS2372h-607:* LTE FDD B1/B3/B7/B8/B19/B28 and LTE TDD B40
* UMTS B1/B6/B8/B19
* GSM 850/900/1800/1900MHz
Product Details:
Huawei MS2372 Specifications:
* Technical Standard
- LTE: R9
- HSPA+/HSDPA/HSUPA/WCDMA: R8
* Data Features:
- LTE: DL 150Mpbs / UL 50Mbps
- DC-PA+: DL 42Mbps
- HSPA+ data service of up to 21.6 Mbit/s
* Output Power of ms2372:
- LTE 23dBm (Power Class 3)
- HSPA+/HSUPA/HSDPA/WCDMA +24dBm (Power Class 3)
* Sensitivity:
- LTE: Compliant with 3GPP TS 36.101 (R9)
- WCDMA/HSPA/HSPA+: Compliant with 3GPP TS 25.101(R8)
* Power supply:5V / 700mA
* Temperature range
- Operating: –20℃ to +55℃ (*)
- Storage: –40℃ to +70℃
* Interfaces:
- USB (Type A)
- Standard SIM/USIM Card (2FF)
- External antenna port
* Dimensions of ms2372: 88 mm x 28 mm x 11.5 mm
* Weight: <50g
* Antenna: Built-in antenna, supporting diversity for 3G/4G
* LED: Indicating the network signal
