Product Name:

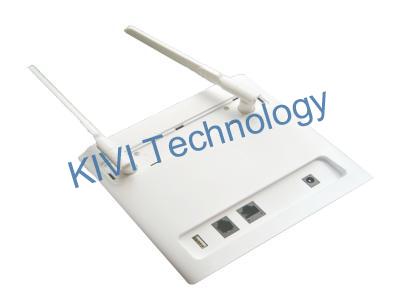

OEM 4g router C10EV cat4 cpe support bank lock wifi General Specifics:
4g wireless router C10XX support vpn and band lockProduct Details:
C10 XX 4G LTE Wireless Router / CPE (Customer Premise Equipment) provides superior wireless access performance and comprehensive routing capabilities to bring wireless broadband data and 4G voice services to endusers. It converts high-speed LTE FDD/TDD signal to Wi-Fi signals on the local area network (LAN) and Wireless LAN (WLAN). Wireless and wired devices which including mobile phones, laptops, tablets, printers, IP cameras and other smart devices, can access the ComFi C10 4G LTE Wireless Router / CPE simultaneously
Main Hardware:
1, Ethernet: 1 x RJ45 10/100Mbps Ethernet Port, Adaptive, Auto MDX (Auto WAN/LAN)
2, Voice:1 x RJ11 VoLTE Telephone Port (Optional)
3, Usb: 1 x USB 2.0 Host Port (For Debug Purpose Only)
4, Power supply: 1 x Standard Power Input Jack, 12VDC
5, Power button and WPS key available
6, Reset: 1 x Pin-hole Reset Button. Long press 3-second to activate factory settings restore
Chipset and RAM Specifications
Main Chipset ZX297520V3E, 3GPP Release 9, CAT4 modem
Flash On-Chip 128MB Flash (ZX297520V3E)
Ram On-Chip 64MB (ZX297520V3E)
Cellular Band/Frequency (Pacific version):
4G LTE-FDD B1, B2, B3, B5, B7, B8, B28A, B28B
4G LTE-TDD B38, B39, B40, B41 TD-SCDMA B34, B39
WCDMA B1, B2, B5, B8 GSM 850, 900, 1800, 1900 (Quad-Band)
Cellular Band/Frequency (Europe version):
4G LTE-FDD B1, B2, B3, B5, B7, B8, B20
4G LTE-TDD B34, B38, B39, B40, B41 TD-SCDMA B34, B39
WCDMA B1, B2, B5, B8 GSM 850, 900, 1800, 1900 (Quad-Band)
Cellular Band/Frequency (China / India version) :
4G LTE-FDD B1, B3, B5, B8
4G LTE-TDD B34, B38, B39, B40, B41 TD-SCDMA B34, B39
WCDMA B1, B8 GSM 900, 1800
Cellular Band/Frequency (America version):
4G LTE-FDD B2, B3, B4, B5, B7, B8, B28A, B28B, B66
WCDMA B2, B4, B5, B8 GSM 850, 900, 1800, 1900 (Quad-Band)
WiFi Specifications
WiFi Standards IEEE 802.11b/g/n
Frequency 2.4GHz 802.11n MIMO 300Mbps
Channel Bandwidth 20MHz, 40MHz
Tx / Rx 2T2R 300Mbps
MIMO 2x2
Antenna Gain 3dbi
Concurrent Users max. 15 Users
WiFi Encryption Open, WPA-PSK, WPA2-PSK
LTE Scan Mode: Full Band Scan, Frequency Lock, PCI Lock WLAN :WPS Function
VPN :L2TP, PPTP
NAT Port Forwarding/ DMZ
Firewall :IP/MAC/URL Filter, Access Control, SYN Flood, TCP Port Scan, Death of Ping
Optional VoLTE/CSFB (Available in C10V, C10VB, C10EV, C10EVB Models) TR069
